CROSS SLIDE TABLE 3002-64

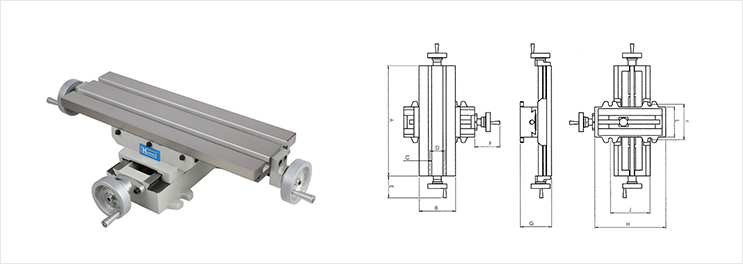

CROSS SLIDE TABLE

Parallism:0.03/100mm
Squareness: 0.05/100mm

Order code 3002-	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	J (mm)	K (mm)	L (mm)	X Travel mm	Y Travel mm	Qty/Ctn	Packing (cm)	NW/GW (kg)
6411	473	156	14	62.5	94	108	134	305	170	152	130	270	120	1	67x43x22	26/28

Order code
3002-

A
(inches)

B
(inches)

C
(inches)

D
(inches)

E
(inches)

F
(inches)

G
(inches)

H
(inches)

J
(inches)

K
(inches)

L
(inches)

X Travel
(inches)

Y Travel
(inches)

6411

18"

.55"

2.46"

3.7"

4.25"

5.3"

12"

6.7"

10.6"

4.7"
